WAVLINK UTD41 PRO 15-in-1 Thunderbolt 4 Docking Station USB-A / RJ45 / Audio / SD Card Reader - EU Plug

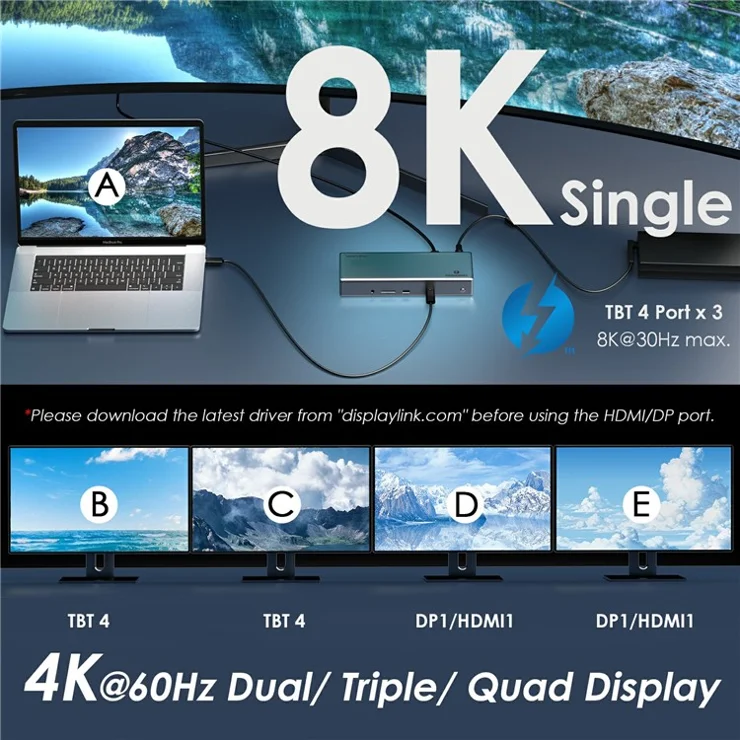

• Dual 4K@60Hz Video Streams: This docking station supports dual 4K@60Hz display via a single video stream, with each video stream offering only one selection. For more advanced setups, combining any two Thunderbolt 4 downstream ports allows for four 4K@60Hz video outputs
• Thunderbolt 4 Ports: Featuring three Thunderbolt 4 downstream ports, this dock supports single 8K@30Hz or dual 4K@60Hz displays. Any two Thunderbolt 4 ports combined can drive up to four 4K@60Hz displays. Note: Each video stream configuration must use either the DisplayPort or HD port but not both simultaneously
• 2.5G Ethernet: The dock includes one RJ45 port for 2.5G Ethernet, offering backward compatibility with 1000/100/10 Mbps networks, providing fast and reliable wired network connectivity
• USB Ports: Equipped with two USB-A ports capable of data transfer speeds up to 10Gbps and two additional USB-A ports with speeds up to 5Gbps, the dock ensures efficient data transfer and connectivity for peripherals
• SD Card Reader: Integrated SD V4.0 card reader supports UHS-II speeds up to 312MB/s, backward compatible with SDXC, SDHC, and standard SD cards, making it ideal for photographers and videographers
• Audio/Mic Interface: Features a 3.5mm audio/mic jack compatible with CTIA/OMTP headsets, providing both audio and microphone functionality
• Security Lock: Includes for Kensington lock slot to help prevent theft and secure the docking station

Specifications:

• Model: WL-UTD41Pro
• Ports (15-in-1):
• Front:
• 1 x 3.5mm Audio/Mic
• 1 x SD Card Slot (312MB/s)
• 1 x USB-A (10Gbps, 7.5W)
• 1 x Upstream Thunderbolt 4 Port (40Gbps, 98W)
• 1 x Power Switch
• Back:
• 1 x DC In (20V/10A, 200W)
• 3 x Downstream Thunderbolt 4 Ports (40Gbps, PD15W, 8K)
• 1 x USB-A (10Gbps)
• 2 x USB-A (5Gbps)
• 1 x RJ45 Ethernet (2.5Gbps)
• 2 x Video Streams (4K DP + 4K HD)
• Power Supply: DC20V/10A, 200W
• Dimensions: 24cm x 8.1cm x 3.9cm (9.4in x 3.3in x 1.5in)
• Weight: 501g (17.7oz)
• Cable Lengths:
• Thunderbolt 4 Cable: 80cm (31.5 in)
• Power Adapter Cable (Plug End): 150cm (59 in)
• Power Adapter Cable (Round End): 110cm (43 in)
• Enclosure Material: Aluminum Alloy
• Status Indicator Light: Red

Notes:

• The three Thunderbolt 4 ports support up to two displays simultaneously.
• Each video stream configuration allows use of only one port. For video stream A and stream B, you can only use either the DisplayPort or HD port, not both at the same time.
• For Macs with M1/M2 chips can only output one video from the three Thunderbolt 4 ports, though HD/DP ports will function normally.
• Ensure to download the latest drivers from displaylink.com before using HD/DP ports.
• Keep the power connection active when using this dock (power adapter included).
• For 8K display support, the computer’s USB-C port must support DP1.4.
• Performance may be limited for non-Thunderbolt 3/4 USB-C laptops.
• The dock does not support HDCP.
• All Thunderbolt 4 downstream ports and one USB 3.1 quick-charge port support offline charging, allowing peripheral devices to charge even when the computer is disconnected or powered off.
