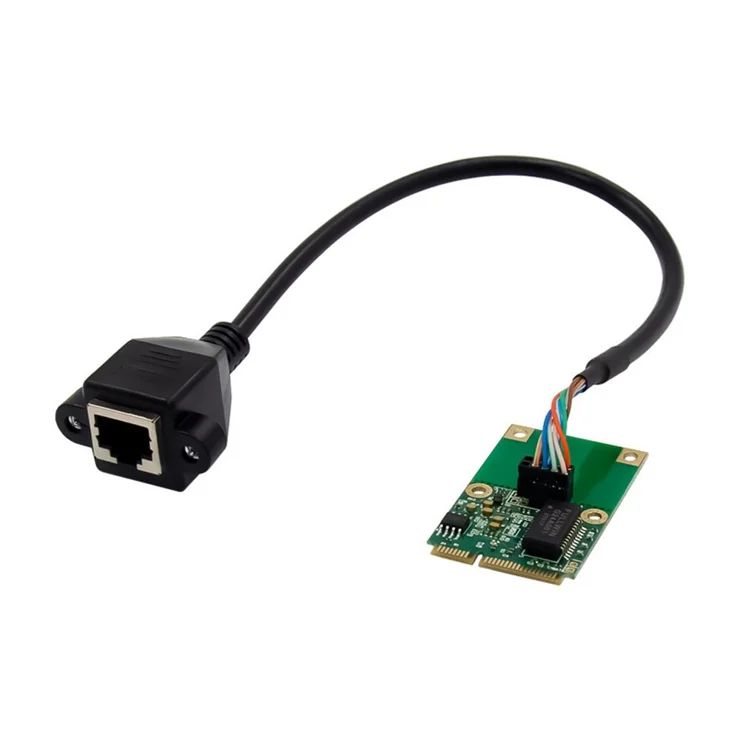

MiniPCIE RJ45 Interface Gigabit Ethernet Server Controller Network Card WGI210AT Adapter

• Mini PCIE Gigabit fiber server network card is a self-developed one based on the Intel I210AT chipset network solution
• Mini PCIE single copper port RJ45 Ethernet network adapter. Support 1000M link rate automatically adapt to the existing Ethernet network
• SM-LGI210A-BT adopts miniPCIE slot design, which is widely used in industrial computer, embedded computer, single board computer, digital multimedia, etc.
• Network equipment, to solve the problem of compact equipment space. The adapter card has high performance, high stability, and very good compatibility
• Mini PCIE I210 Gigabit Ethernet adapter can be widely used in: industrial computer, embedded computer, single board computer, digital multimedia and other network equipment
• RJ45 socket, supports the following transceivers: Mini GBiC
• Chipset: Intel I210AT
• Layer 2 functions: IEEE 802.3x flow control - IEEE 802.1q VLAN
• Support Receive Side Scaling (RSS)
• Support IPv4, IPv6 protocols
• Supports 9K jumbo frames
• Support checksum offload

Specification:

• Network Type: Gigabit Ethernet
• Main Controller: Intel I210AT
• Bus card slot: mini PCIe
• Transmission medium: 1 x RJ45 interface
• Transmission rate: 1000/100/10Mbps
• Network topology:
• IEEE802.3z 1000BASE-X Gigabit Ethernet
• IEEE 802.3x Full Duplex and flow control
• IEEE 802.3ad Link aggregation for parallel links
• IEEE 802.1Q VLAN, IEEE 1588
• IEEE 802.3az - Energy Efficient Ethernet (EEE)
• Features: Support PXE, DPDK, WOL, iSCSI, FCoE, Jumbo Frame, etc
• Working temperature: 0~55℃
• Storage temperature: -40~70℃
• System Requirements: Win 7/ Server 2012/ Server2008/ Win 8/ Win 8.1/ Server2016/ Win 10, FreeBSD, for Linux, VMWare ESXi
• Cable length: 31.5cm
• MiniPCI-E main card size: 30*51mm
