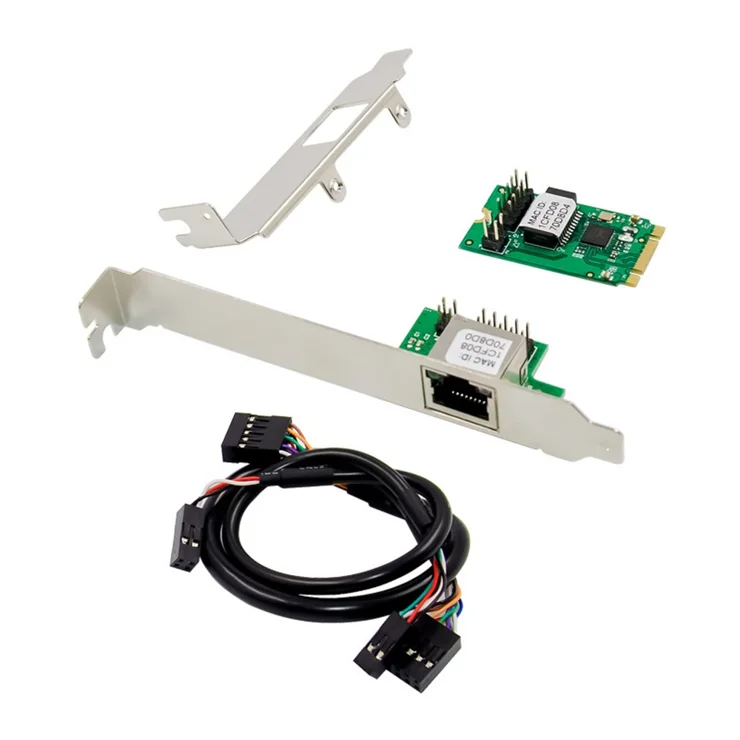

M.2 RTL8111F Adaptive Gigabit Single Port Ethernet Card GbE RJ45 Gigabit Industrial Network Card

• SM-LG8111A-BT is a cost-effective 10/100/1000M adaptive Gigabit Ethernet card. Fully comply with IEEE 802.3 10Base-T Ethernet standard, IEEE 802.3u 100MBase-TX Fast Ethernet standard and IEEE 802.3ab 1000MBase-T
• Gigabit Ethernet standard, supports IEEE 802.3x full-duplex flow control
• SM-LG8111A-BT adopts M.2 2260 standard interface (22x60x6.1mm) to ensure sufficient bandwidth. The transmission rate of the M.2 B+M Key interface is 2.5Gb/s, and the user can provide an RJ-45 network interface for the system through an adapter cable, front or rear daughter card
• It has a network speed of 1000Mbps in full duplex, supports crossover detection and automatic correction, and is backward compatible with 10/100BASE-T
• Network 10/100/1000MbPS data rate auto-negotiation operation, compatible with existing CAT-5UTP cables, users can achieve convenient, fast, simple and reliable connection
• Compliant with M.2 B+M KEY NVMe bus interface specification
• High Performance 1000BASE-T Ethernet Controller Card
• Backward compatible with 10/100BASE-T networks
• Supports jumbo frames up to 9K bytes
• 10/100/1000Mbps data rate auto-negotiation operation
• Compatible with existing CAT-5 UTP cables
• Fully compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab
• Supports half/full duplex mode and 802.3x flow control
• Support IEEE802.1P Layer2 priority encoding
• Supports IEEE 802.1Q VLAN tagging
• Transmit/Receive on-chip buffer support
• Cross detection and automatic correction operations
• Support power down / link power saving
• Wake-on-LAN and Remote Wake-up support

Specification:

• MiniPCI-E main card: 30*51mm
• MiniPCI-E daughter card: 25*38mm
• 4-pin cable: 26.5cm
• 10-pin cable: 27cm
• Network Type: M.2 to Gigabit Ethernet
• Bus type: M.2 2242 standard interface, 2.5Gb/s
• Main Chipset: Realtek RTL8111F
• Transmission medium: 1 x RJ45 port
• Transmission rate: 10/100/1000Mbps

Operating system:

• For Windows ME, 98SE, 2000, XP, Vista, Win 7, Win 8 and Win 10 32/64bit
• For Windows Server 2003, 2008, 2012 and 2016 32/64bit
• For Linux, for DOS MAC OS X 10.4.X or above
