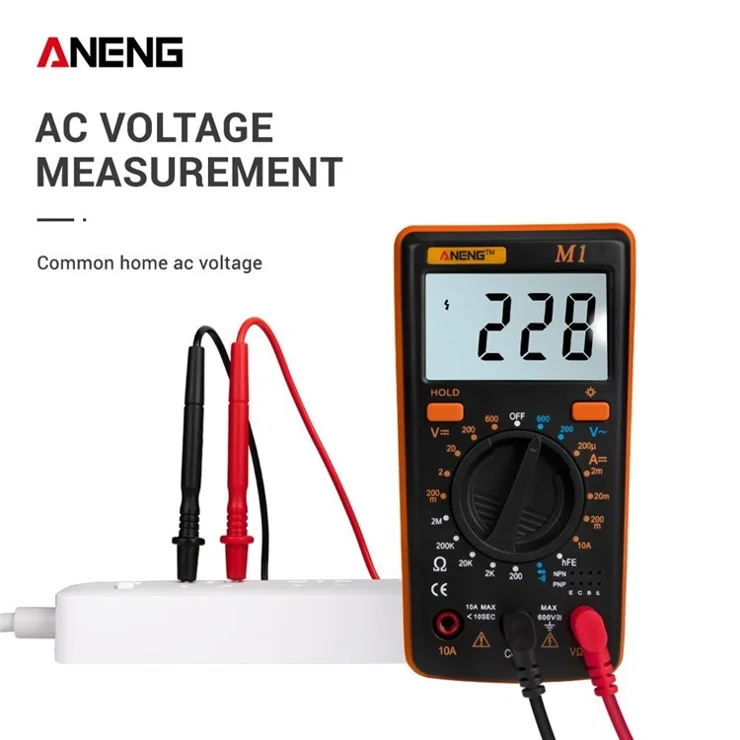

ANENG M1 Handheld Digital LCR Meter AC/DC Voltage Current Tester ResistanceTests Live Wire Continuity Overload Protection - Orange

The meter is a handheld 3 1/2 digital multimeter for measuring DC and AC voltage, DC and AC current, Resistance, Diode, Transistor and Continuity Test with battery operated. Special models also can be used for testing freguency, temperature, capacitance and NCV.

• Accuracy is specified for a period of one year after calibration and at 18℃ to 28℃(64℉ to 82℉) with a relative humidity of 80%.
• Multifunctional Multimeter - High precision with data keeping function. Portable digital multimeter with multiple functions
• Overload Protection - Use a protection circuit for resistance and frequency measurement. Designed to be a practical tool, safely troubleshoot a variety of electrical tests
• Backlight Display - Maximum display,19999 counts. Optional backlit LCD with large digits for visibility even in dimly lit areas. Data hold function keeps measurements while record
• Features Plus - For special models also can be used for testing frequency, temperature, capacitance and NCV
• Widespread Use - Auto-ranging measurement. Accurately measures such as AC/DC voltage and current,resistance,continuity,diode,capacitance,frequency/duty cycle,temperature,transistor and continuity test with battery operated

Specifications:

• Material: ABS
• Maximum voltage between terminals and earth ground: 600V DC or 600V AC
• Fuse protection: F 250Ma/250V Self-restoring fuse
• Power: 9V battery, NEDA 1604 or 6F22
• Display: LCD, 1999 counts, updates 2-3 times per second
• Measuring method: Dual-slope integration A/D converter
• Over range Indication: Only figure “1” on the display
• Polarity indication: “-”display for negative polarity
• Operating Environment: 0 to 40℃
• Storage temperature: -10 to 50℃
• Low battery indication: appears on the display
• DC VOLTAGE: Overload Protection: 250V RMS for 200mV range, and 600V DC or rms AC for other ranges.
• AC VOLTAGE: Overload Protection: 600V DC or AC RMS
• DC CURRENT:
• Overload Protection: 250V DC or AC RMS for all ranges.
• Overload Protection: F250Ma/250V fuse. (10A range unfused)
• AC CURRENT:
• Overload Protection: 250V DC or AC RMS for all ranges.
• Overload Protection: F250Ma/250V fuse. (10A range unfused)
• RESISTANCE:
• Maximum Open-circuit Voltage: 3.2V
• Overload Protection: 250V DC or AC RMS for all ranges.
• CAPACITANCE:
• Overload Protection: 250V DC or AC RMS for all ranges.
• Overload Protection: F250Ma/250V fuse.
• Item Size: 130.3*67.6*31.4mm / 1.26*2.48*5.12"
• Item Weight: 81g / 2.86oz
