806FC12 EU Plug 7" Wired Intercom Video Doorbell System 1 Camera+2 Monitor

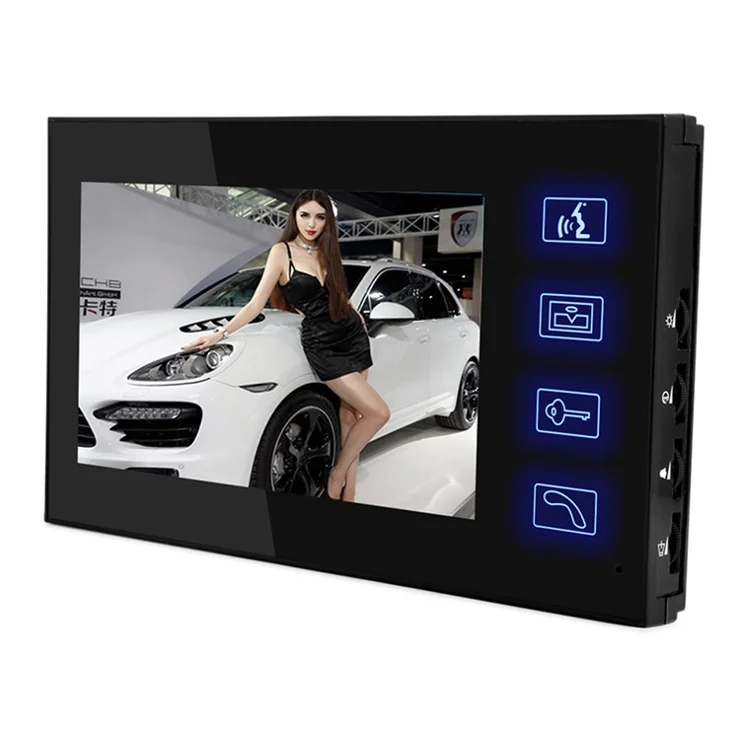

Indoor Unit:

• It has Surveillance, Talkback, Unlocking, Ring music choice, Indoor intercom, Sound volume control, Brightness and Color Adjustment function
• 7Inch TFT LCD, nonradioactive, low power consumption, High definition widescreen image
• Hands-free intercom function
• Monitoring functions. The remote unlock function
• Image brightness, chroma, ring music choice, sound volume control can be adjusted
• Ultra-thin aluminum panel ABS design
• 16 different polyphonic sound Ring music choice, will not always hear the monotone of doorbell ring
• Wall-mounted installation
• Indoor Unit Size: 22.5*12.8*2.3cm
• Connection mode: (outdoor unit to indoor unit Used to 4 Core cable)
• Power supply mode: DC15V/1.2A
• Two indoor unit can one to one talkback

Outdoor unit:

• Antioxidant Acrylic plate and wear-resisting
• ABS shell
• 1099 COMS HD photosensitive Chip, 700TVL, 3.6mm Lens, 92 degrees viewing angle
• Infrared night vision function (5 PCS IR Led + 1 PCS light resistance)
• Touch Keypad, Blue backlight, IP55 Water proof cover
• It has Power to unlock, Power lock, Exit Button unlock Function
• Wall-mounted installation
• Outdoor unit size: 155*100*55mm
• Connection mode: 4 Core cable
• Power supply mode: DC15V/1.2A
• Power supply: AC100-240V/ DC15V 1.2A/50/60HZ
• Machine current: less than 800mA
• Call delay time: 120S±10%
• Surveillance delay time: 60S±10%
• Camera sensor: 700TVL
• Lens: 3.6mm Lens, 92 degrees viewing angle

Wiring Requirements:

• 1. Within 15 meters can choose with five types of Lan cable
• 2. 16-30 meters please choose four core pure copper cable with 0.3 square
• 3. 31-50 meters please choose four core pure copper cable with 0.5 square
• 4. 51-80 meters please choose four core pure copper cable with 0.75 square
• 5. 80-120 meters please choose 1.0 square four core pure copper cable
• 6. 120-150 meters please choose 1.5 square four core pure copper cable

Note: Does not include built-in rechargeable battery or memory card.
