Specifications:
Product number | PS-219 |
Product material | PC/ABS |
Inflation pressure range | 0.35-10.3Bar/5-150PSI |
Cylinder inner diameter | 22mm |
Working current | ≤6A |
Operating Voltage | 14.8V |
power | ≤88W |
Aluminum light cup battery life | High configuration: 32h Low configuration: 25h |
COB light strip battery life | High configuration, strong gear: 9h, weak gear: 17h Low configuration, strong gear: 7h, weak gear: 14h |
Aluminum light cup Current, voltage, power |
3.7V/220mA/0.8W |
COB light strip Current, voltage, power |
Strong mode: 6V / 700mA / 4.2W Weak gear: 6V / 280mA / 1.68W |
Type-C input | 5V/2A |
USB output | 5V/2A |
Battery specifications | 6888 polymer battery |
battery capacity | 1500mAh*4 |
Charging time | 4-5 hours |
Air volume | About 25L/MIN |
Overall machine life | ≥150 times (195/65/R15 tires. 0-36PSI, 5 minutes between each cycle) |
Measurement error | ±1psi |
Operating temperature | -20-60℃ |

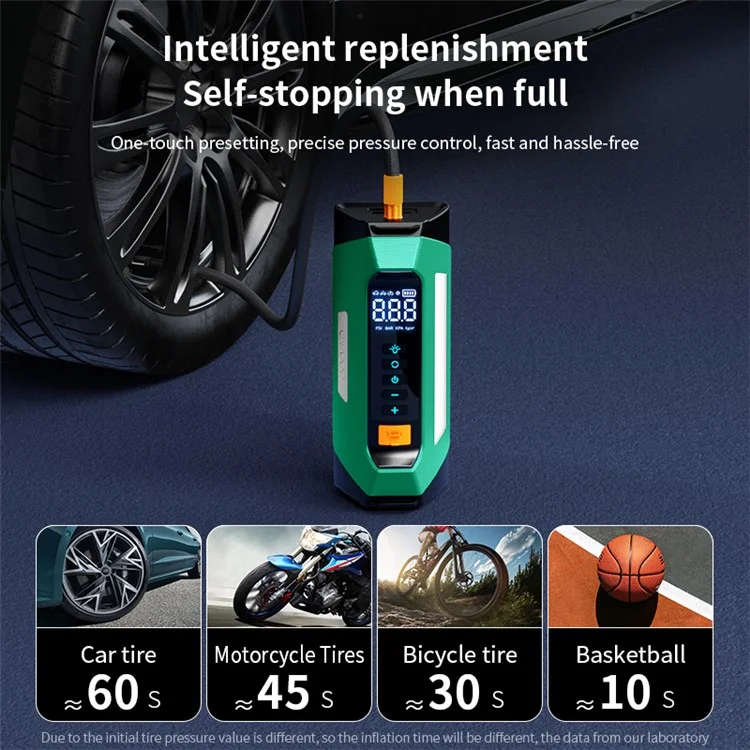

Inflatable performance | Continuously inflate from 0 to 2.5Bar, tire specification: 195/65R15 First time: 5min35s Second time: 6min20s The third time: 6min40s Fourth time: 6min42s The fifth time: 7min (hit to 2.45bar) Total discharge time: 32min17s |
Battery clamp type | Smart battery clip |
Compatible models | 12V gasoline car |
Starting current | 500A |
Peak current | 800A |
Ignition performance | 5.0 displacement 10 times + 3.0 displacement 20 times |
