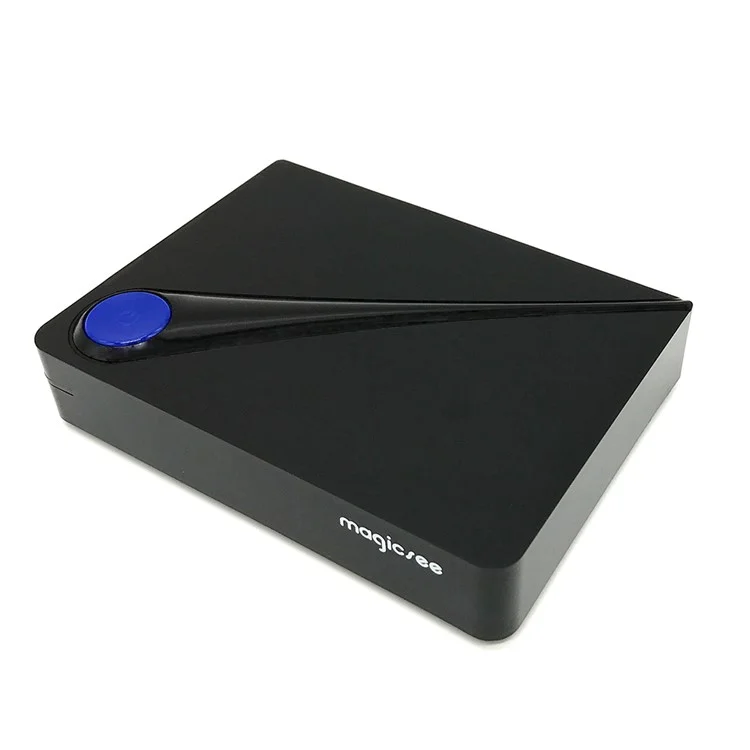

MAGICSEE C300 Pro DVB T2+S2 4K Smart TV Box, Quad-core 2GB+16GB Android 6.0 - EU Plug
Advanced CPU Amlogic S912 Octa core ARM Cortex-A53, makes your box running fast
With Android 6.0 system, we will have high speed feedback and smooth response
Built-in 2.4G WiFi, can download the apps on the Internet, watching video, playing games and so on
With HDMI and 4 USB ports, you can connect your mouse and keyboard to help you operate more convenient
Support DVB-S2 and DVB-T2 standard
RAM 2GB and ROM 16GB
Easy connection and simple operation
Specification:
| Model | C300 PRO | |||
| Hardware | ||||
| CPU | Amlogic S912 Octa core ARM Cortex-A53 | |||
| GPU | ARM Mali-T820MP3 | |||
| 3D Graphics | OpenGL ES 1.1/2.0 and Open VG 1.1 support | |||
| Video | UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding | |||
| RAM | DDRIII 2GB | |||
| ROM | eMMC Flash 16GB | |||
| WiFi | Built-in 2.4G WiFi, support IEEE 802.11 b/g/n/ac | |||
| Bluetooth | Bluetooth 4.1 | |||
| IR | Infra remote control | |||
| LED Indicator | Power ON: blue; Standby: Red | |||
| I/O | HDMI | 4K/2K HDMI2.0 | ||
| 4*USB HOST | 4 High speed USB 2.0, support U DISK and USB HDD | |||
| 1*TF CARD | Micro TF card (Maximum support 32GB) | |||
| 1*AV | AV output | |||
| 1*SPDIF | Audio output | |||
| 1*RJ45 | 10M/100M | |||
| Power | DC adapter ( 12V/1.5A) | |||
| DVB-S2 | DVB-S2 system standard: ETS 302 307 | |||
| Symbol Rates: QPSK, 8PSK | ||||
| Forward error correction rate 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | ||||
| Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates | ||||
| Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 | ||||
| Symbol Rates: 1- 55 Msps | ||||
| Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 | ||||
| Input Signal level: -84 dBm to 0 dBm (average power) | ||||
| ANT. connector: IEC TYPE F | ||||
| DVB-T2 | DVB-T2 system standard: ETSIEN 302 755 | |||
| Support MPLP | ||||
| Demodulation: QPSK, 16QAM, 64QAM or 256QAM | ||||
| Forward error correction rate 1/2, 2/3, 3/4, 3/5, 5/6 | ||||
| Guard interval: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128 | ||||
| Bandwidth: 6/7/8MHz | ||||
| Input range: 54-860MHz, input impedance: 75Ω | ||||
| Input signal level: -84 dBm to 0 dBm (average power) | ||||
| ANT. connector: IEC TYPE, female | ||||
| Software | ||||
| OS | Android 6.0 | |||
| Decoder | HD MPEG1/2/4, H.265/HEVC, HD AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6, RealVideo8/9/10 | |||
| Video | AVI/RM/RMVB/TS/VOB/MKV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG | |||
| Music | MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE | |||
| Photo | HD JPEG/BMP/GIF/PNG/TIFF | |||
| Support Language | Chinese, English, Germany, Japanese, Korea etc. 24 languages | |||
| WiFi Hotpoint | Support | |||
| Mouse/ Keyboard | Support mouse and keyboard via USB Support 2.4G wireless mouse and keyboard via 2.4G USB dongle | |||
| Others | support DLNA \ AirPlay \ Google TV Remote \ LAN \ Miracast \ 3D movie | |||
| Applications | ||||
| Online | Browse all video websites, support Netflix, Hulu, Flicker, Picasa, Youtube, Twitter, Facebook, etc | |||
| Apps | Apps download freely form android market, amazon appstore etc | |||
| Medium | Local media playback, support HDD, U disc, TF card | |||
| Talk online | Support SKYPE video call, Facebook, Twitter, Netflix, Youtube, etc | |||
| Others | Support Email, office suit etc | |||
| Dimensions & Weight (without Package) | ||||
| Size | 148*120*33mm | |||
| Weight | 195g | |||
