Product Descriptions

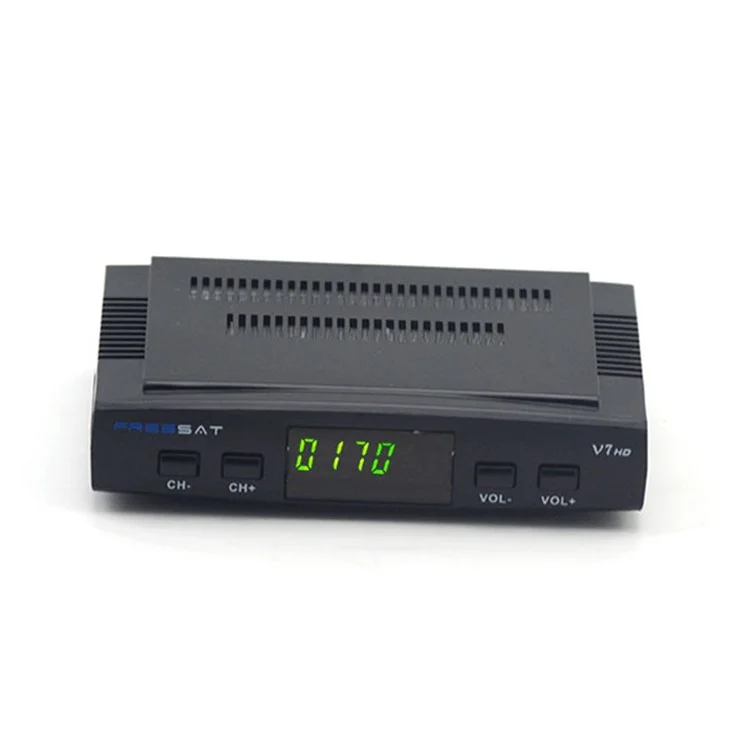

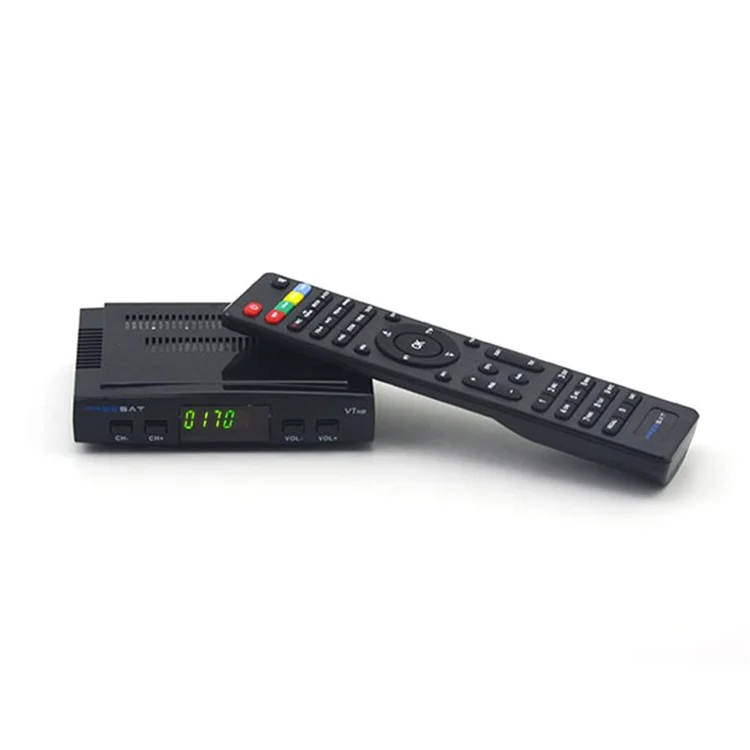

FREESAT V7 1080P HD Satellite TV Receiver Box Support USB PVR EPG for HDTV - Black / US Plug
1080P Full HD Digital Receiver, a high quality mini DVB-S2 set top box, enables you to freely enjoy plenty of HD TV programs
6000 channels TV and Radio programmable, fully support to 7 days Electronic Program Guide (EPG); various channel editing function (favorite, move, lock, skip, delete, rename, find, sort); parental control for channels.
Support USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card; support PVR with USB HDD, time shifting with USB HDD; also support USB Wi-Fi Dongle (do not include) for Network Sharing.
Support YouTube, via USB Wi-Fi dongle. You can buy a USB Wi-Fi dongle by yourself to reach these functions.
Automatic PAL/NTSC conversion; Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box
Specification:
| Product Size (MM) | 110*70*20 （L*W*H） | |||
| Panel display | Yes | Display Color | Green | |
| Button | CH+/CH-/VOL+/VOL- | |||
| USB | 1 x USB 2.0 High Speed Host | |||
| IR | Exit IR for 38KHz | |||
| Output Interface | LNB IN*1, HD OUT, USB, AV, Power supply | |||
| HDMI | HDMI(up to 1080P) output | |||
| Main Features | ||||
| Standard | DVB-S/S2 Compliant | |||
| Encrypt | yes | |||
| Video Modulator | yes | |||
| Power Supply | Input DC 12V/1.2A | |||
| Video Decode | AC-3, MPEG-2 MP@HL; H.264 BP MP&HP@L4.1; AVS profile@L6.1/4.0/2.0 | |||
| PAL/NTSC | Automatic PAL/NTSC conversion | |||
| Channels Number | 3000 channels TV and Radio programmable | |||
| Favorites | 8 different favorite groups selection | |||
| OSD Language | English, German, French, Portuguese, Spanish, Italian, Russian, Turkish, Polish, Arabic, Farsi | |||
| EPG | Fully support to 7 days Electronic Program Guide (EPG) | |||
| Picture | JPEG,BMP,PNG,GIF Supported | |||
| OSD Color | 16-bit OSD with anti-flickering | |||
| Channel Search | Channel search in automatic, manual and network search | |||
| Channel Edit | Various channel editing function (favorite, move, lock, skip, delete, rename, find, sort) | |||
| Parental Ctrl | Parental control for channels | |||
| Easy Menu | Plug and Play installation, with an easy to use Menu System | |||
| Soft Upgrade | Software upgrade through USB | |||
| Time Set | Time set by GMT offset automatic and manual, Summer Time support | |||
| Timer | 5 event timers, Off/Once/Daily/Weekly Mode | |||
| Subtitle | Subtitle support | |||
| Teletext | VBI insertion for Teletext | |||
| Save Channel | Automatic save for last channel | |||
| Electric Performance | ||||
| 1. Memory Size | ||||
| Flash Memory | 32MB Serial Flash | |||
| DDR2 Memory | 512M Bits | |||
| 2. DVB-S2 Tuner | ||||
| Input Frequency Range | 950MHz-2150MHz | |||
| Input Impedance | 75Ω | |||
| RF Input Signal LEVEL | -80/-20dBM | |||
| Active and Power | 13/18V DC @ 400mA Max, Overload Protection | |||
| 3. DVB-S2 Channel Decode | ||||
| Demod Standard | DVB-S2 Standard | |||
| MPEG Profile Level | AC-3,MPEG-2 MP@HL;H.264 BP MP&HP@L4.1 | |||
| Demodulation | QPSK,8PSK,16APSK,32APSK | |||
| 4. USB Decode | ||||
| PVR | Support | |||
| Media Supporting | USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card | |||
| File System | FAT32, NTFS (only support first partition) | |||
| USB | PVR with USB HDD, Time shifting with USB HDD | |||
| USB WiFi | Support (RT5370 module) | |||
| 5. Multimedia Support Format | ||||
| Movie | mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp | |||
| Music | mp3 | |||
| Photo | JPG, BMP, PNG, GIF | |||
| 6. Video Decode | ||||
| Video Decode | High Definition MPEG4 AVC/H.264 HP@L4.1,MPEG-2 MP@HL/ML | |||
| Aspect Ratio | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box | |||
| 7. Audio Decode | ||||
| Audio Decode | MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC | |||
| Sound Mode | LEFT/RIGHT/STEREO/MONO | |||
| Sampling Frequency | 32KHz, 44.1KHz, 48KHz | |||
| 8. Environment | ||||
| Input Voltage | Input 110V ～240V, 50/60Hz DC12V/1.2A | |||
| Consumption | 10W Max | |||
| Temperature | 0°C to +50°C | |||
| Humidity | <95％ | |||
